Polycab

Polycab Wires suppliers

Heavy Duty Cables

 Power and Control Cables
 High Voltage Cables
 EHV Cables
 Instrumentation Cables
 Railway Signaling Cables
 Fire Survival Cables
 Jelly Filled Telephone Cables

Light Duty Cables

 Building Wires
 Green Wire
 Industrial Flexible Cables
 Co-axial Cables
 Telephone Wires



 Speaker Wire
 LAN Cables
 CCTV Cables
 Submersible Cable
 Festoons Cables

Power & Control Cables

Wide Product Range
  Aluminium/Copper conductor
 Upto 1.1 kV
 1.5 sqmm to 1000 sqmm cable range
 2 core to 100 core, 1.5 & 2.5 sqmm control cable range
 Armoured / Unarmoured
 FR/FRLSH/PVC ST2/LSZH sheathing
 Low Voltage Cable (1.1 kV) with 1, 2, 3, 3.5 & 4 cores
 XLPE insulation, PVC insulation



Ideal For
 Industries such as Renewable Energy / Oil & Gas /
Petrochemicals / Cement / Steel etc.
 Distribution and Power Networks
 Nuclear and Thermal Power Stations
 Airports, Marine, Defence, Telecom
 Building, Mining, Railways
 Automation, Manufacturing Industry

Polycab Wires suppliers
Polycab Wires suppliers

High Voltage Cables

Wide Product Range
 Aluminium/Copper Conductor
 3.3 kV to 33 kV
 35 sqmm to 1200 sqmm
 Armoured / Unarmoured
 FR/FRLSH/PVC ST2/PE/LSZH sheathing
 XLPE; insulation by CCV process with triple head extrusion.



Ideal For
 Power Distribution

EHV Cables

Wide Product Range
 66kV / 110kV / 132kV / 220kV
 Milliken type conductor up to 2500 sq mm
 Sheathing- Aluminium Corrugated/ Lead Sheath/ AL-PE Laminate



Leading Eatures
 Ultra clean rooms for semi-conductive material & XLPE insulation by CCV process with triple head extrusion
 Safer & easier to install
 Low on maintenance when compared to over head conductor
 Longer life
 Best use of high value land in dense populated areas.



Ideal For
 Power Transmission and Distribution,
 Power Generation Station
 Metro Rail, Industrial Parks, Airport, Smart Cities etc.

Polycab Wires suppliers
Polycab Wires suppliers

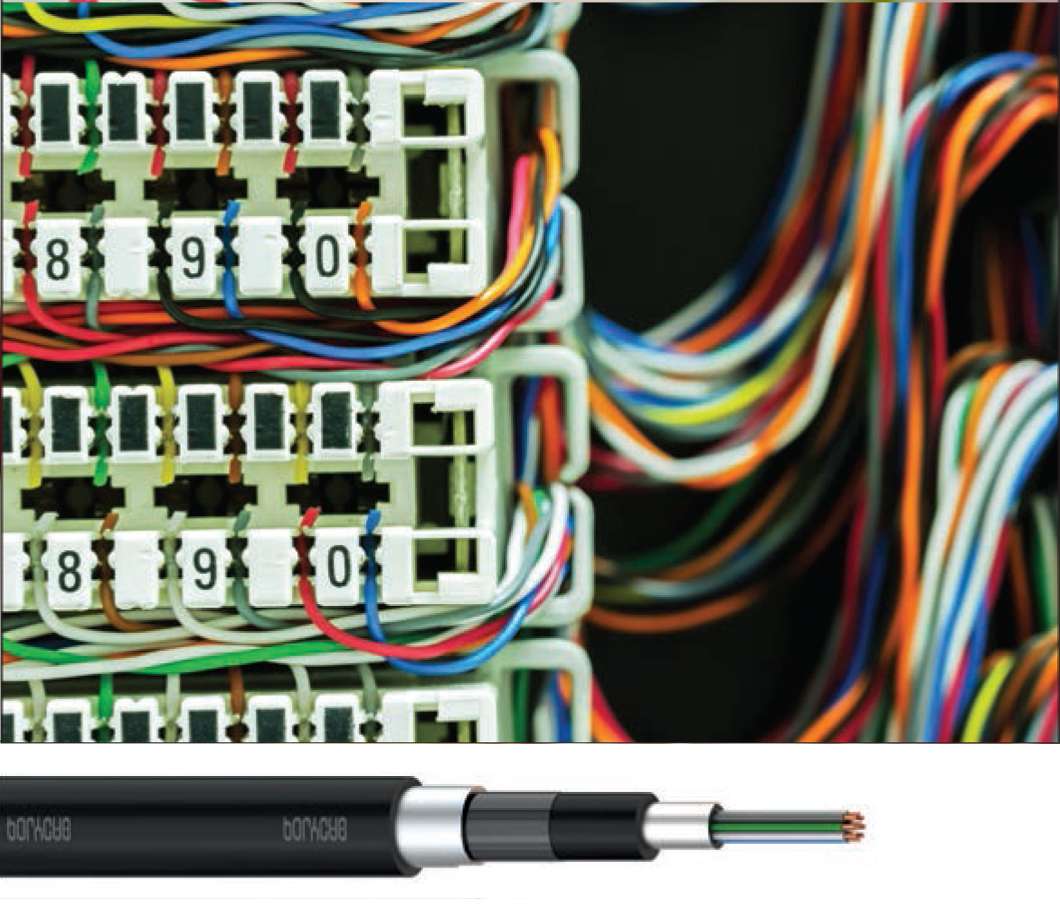

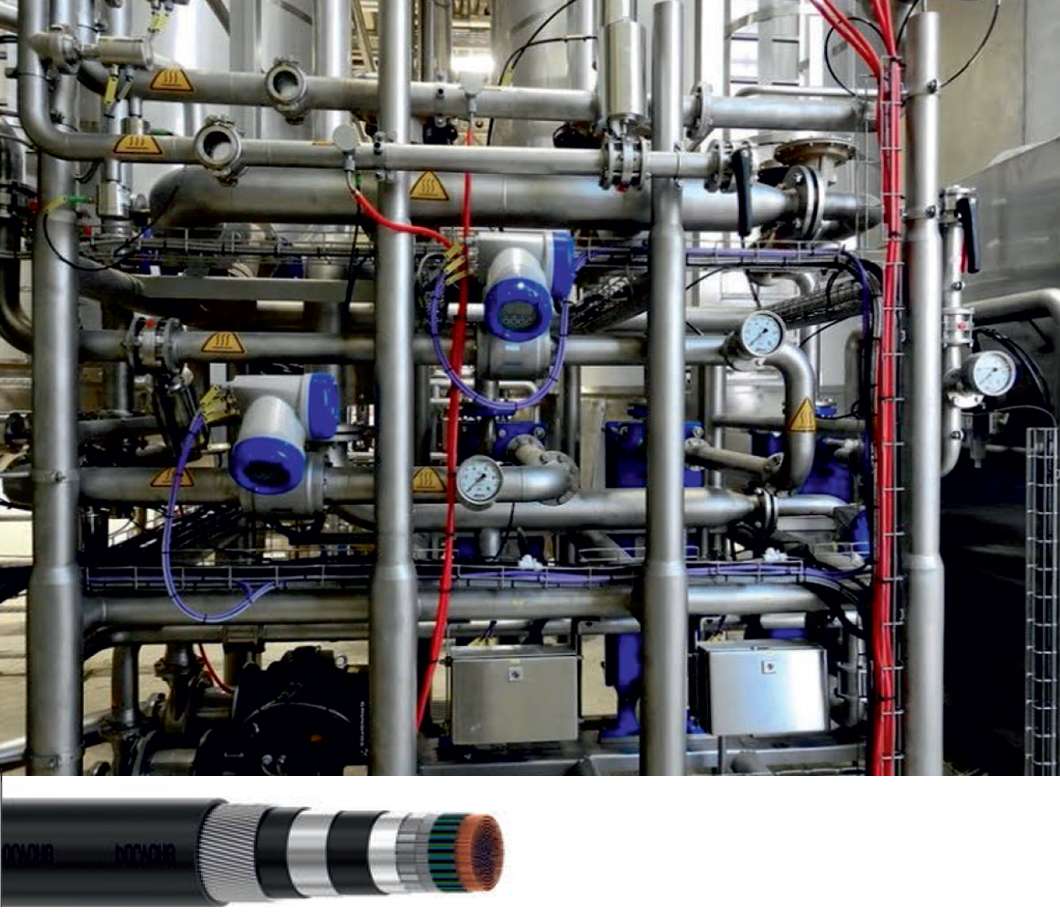

Instrumentation Cables

Wide Product Range
 Stranded / Solid Copper / Tinned Copper Conductor
 PE/PVC/HR-PVC/XLPE /Silicon/FRLSH / EPR Insulated Pair/ Triad / Quad laid up shielded individually / overall with Al Mylar Tape along with ATC Drain Wire.



Leading Features
  Flexible Application
  High temperature withstanding capacity (180°C) for Silicon Rubber.



Ideal For

 Automation
 Instrumentation application in various industries for process control.

Railway Signaling Cables

Wide Product Range
 1.1 kV Grade Copper Conductor Armoured Unscreened PVC Insulated Cable
 As per IRS 63/2007 with amendment number 1 or latest



Leading Features
  Flexible Application



Ideal For
 Rail Signaling

Polycab Wires suppliers
Polycab Wires suppliers

Fire Survival Cables

Features/ Range
 1.1 km grade, power, control & instrument cable
 Copper Conductor to withstand high temperature of fire
  FS (Fire Survival) Application in 750°C to 950 °C for 3 hr.



Leading Features
 HCL Content in this cable is as low as 0.5%
 Toxic index less than 5%
 Visibility in FS cable in an content of fire is more than 95%
 Circuit integrity for 3 Hrs



Ideal For
 Residential Building Usage/Metro/Aiport/Malls/Hospitals / Emergency Lighting / P.A. System /Fire Pumps etc.
 Real Estate industry
 Oil & Gas

Jelly Filled Telephone Cables

Features/ Range
 Underground cable that uses the material polythene as insulation on the conductors with spaces between the conductors filled with petroleum jelly to prevents the entry of moisture or water from entering the core of the cable.



Ideal For
  Telephone cable outdoor use

Polycab Wires suppliers
Polycab Wires suppliers

Building Wires

Features/ Range
 FR (Flame Retardant)
 FRLSH (Flame Retardant Low Smoke Halogen)
 LSZH (Low Smoke Zero Halogen)
 FRLF (Flame Retardant Lead Free)
 HR-FR-LSH-LF ( Heat Resistance low Smoke & Halogen Lead Free )
 FS (Fire Survival)



Leading Eatures
 Flame Retardant
 Glossy & Smooth Surface finish
 Lead Free
 RoHS Compliant



Ideal For
 Residential Building Usage, Hospitals, Malls, High Rise Tower
  Real Estate Industry

Green Wire-HR-FR-LSH-LF

(Heat Resistance Low Smoke & Halogen – Lead Free)

Range
  0.75 Sqmm to 6 Sqmm

Leading Features
  20% Higher current carrying capacity
  20% Higher Temperature Rating (i.e. 85°C) than conventional FR wire
  Energy Saving
  Eco Freindly
  Recyclable
  No traces of Carcinogenic Substances



Ideal For
  Hospitals, Malls, & All Real Estate Industry

Polycab Wires suppliers
Polycab Wires suppliers

Industrial Flexible Cables

Wide Product Range
 Single core & multicore cable
 FR/FR-LSH/HR-FR-LSH/LSZH
 0.5 sqmm to 400 sqmm

Ideal For
  Industrial Application / Machine / Machine Tools, Crane etc.



Leading Features
 Smooth & Glossy Surface
 High Insulation Resistance
 High Abrasion Resistance
 Heat Resistance
 Smooth Surface
 Extra Flexible

Co-Axial Cables

Features/ Range
 RG-59F, RG 6F,RG 6 CCS, RG 11F & RG 11F CCS
 Nitrogen gas injected polyethelene foam insulation
 Composite AI foil Laminated, and AI Alloy Braided for low attenuation with minimum structured return loss under extreme weather conditions to give excellent signal quality
 Giving clear reception on higher bandwidth covering more than 100 channels



Leading Features
 Minimum loss in signal quality, better reception
 Moisture resistance



Ideal For
 Broadcasting industry
 Entertainment

Polycab Wires suppliers
Polycab Wires suppliers

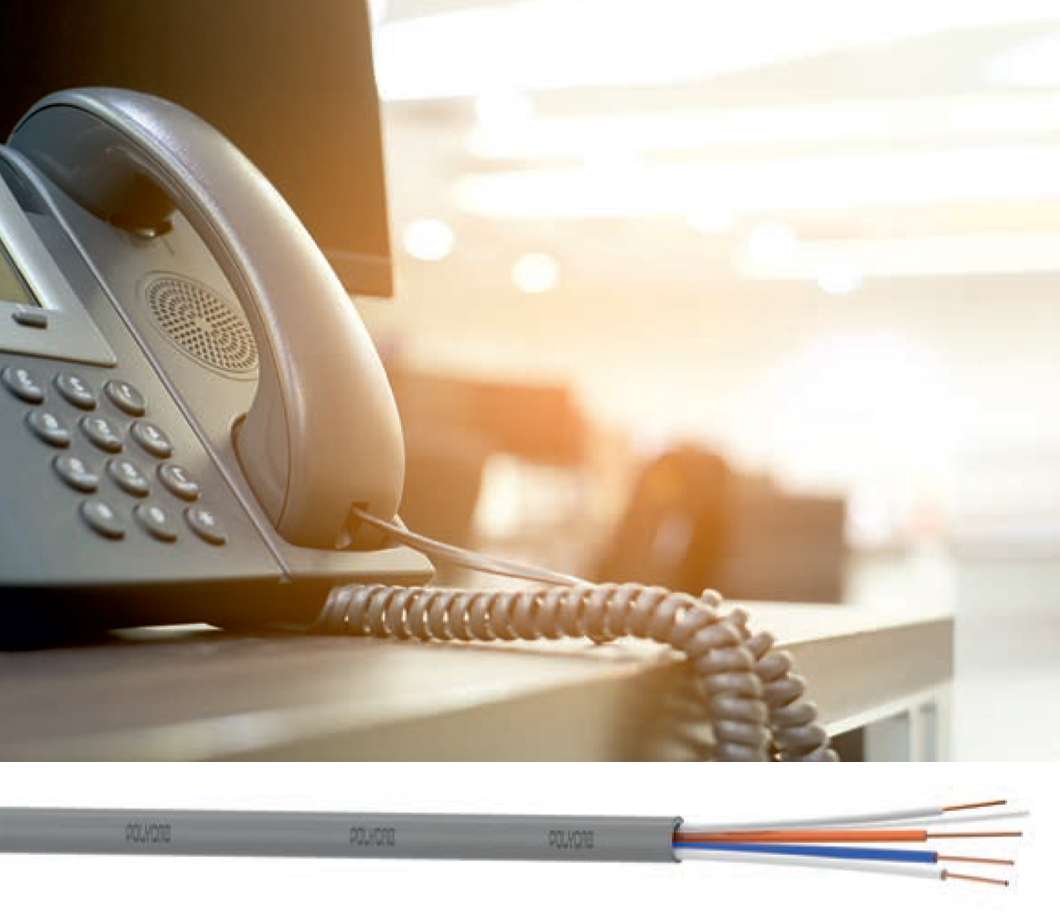

Telephone Wires

Features/ Range
 1 Pair to 100 Pair x 0.40 mm, 0.50 mm and 0.63 mm
 In Solid Bare Conductor with HDPE Insulation and Flame Retardant Jacketing having lower cross talk and attenuation



Leading Features
  Special grade high density polyethylene
  Flame retardant compound made from virgin grade PVC resin



Ideal For

 Telecommunication

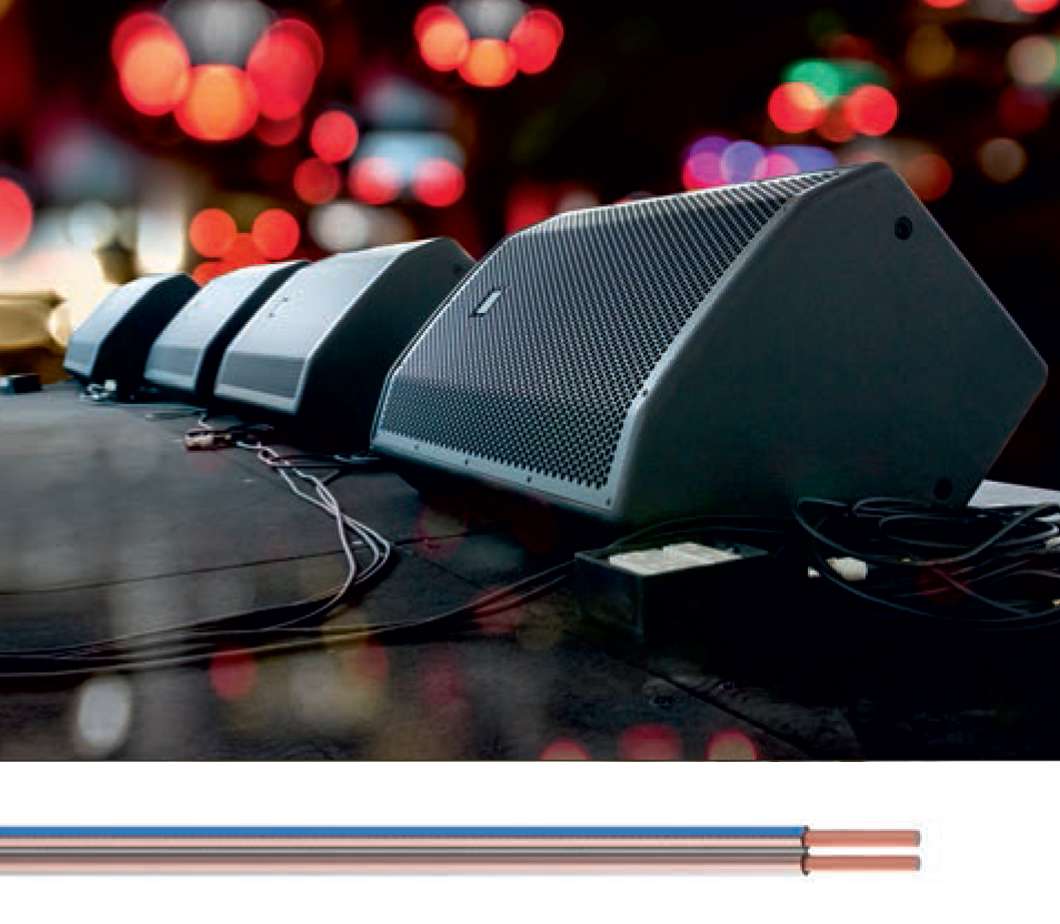

Speaker Wire

Features/ Range
 Twin parallel 23/36, 23/38, 40/36 and 40/38 & 1.5 sq. mm.



Leading Features
 Speaker Cables with high quality oxygen free copper conduction ensuring excellent sound quality for your expensive sound system
 Selecting the right gauge, length and type of speaker wire for your system helps avoiding mismatch with your sound system



Ideal For
 Entertainment
 Theatres
 Broadcasting

Polycab Wires suppliers
Polycab Wires suppliers

LAN Cables

Features/ Range
  Cat 5e & Cat 6 Twisted Pair
  I nsulated with High quality Polyethylene and Unshielded Light Grey PVC Jacket with improved fire-retardant properties



Leading Features
 Low attenuation and cross talk
 Low structural return loss
  Underwriters Laboratories (UL) USA verified Cables



Ideal For
  Local Area Networking (LAN)
  IT Industry / Offices
  Commercial and Residential usage

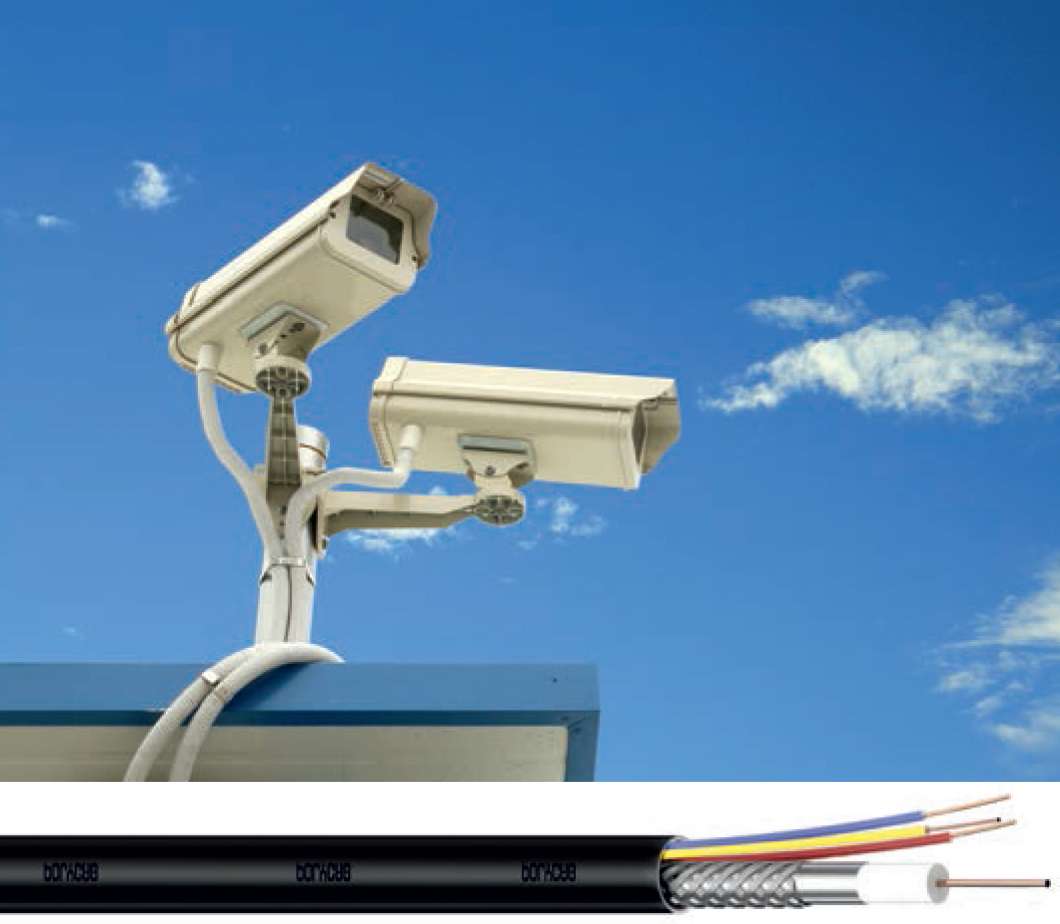

CCTV Cables

Leading Features
  Accuracy in Power and Video Signal Transmission
  4+1 CCTV Cable and 3+1 CCTV Cable
  Transmit the complete video frequency range with minimum distortion or attenuation
  Designed to optimize the quality of video signals
  Solid annealed bare copper conductor of electrolytic grade ensures complete elimination of MEI/RFI from the video signals

Polycab Wires suppliers
Polycab Wires suppliers

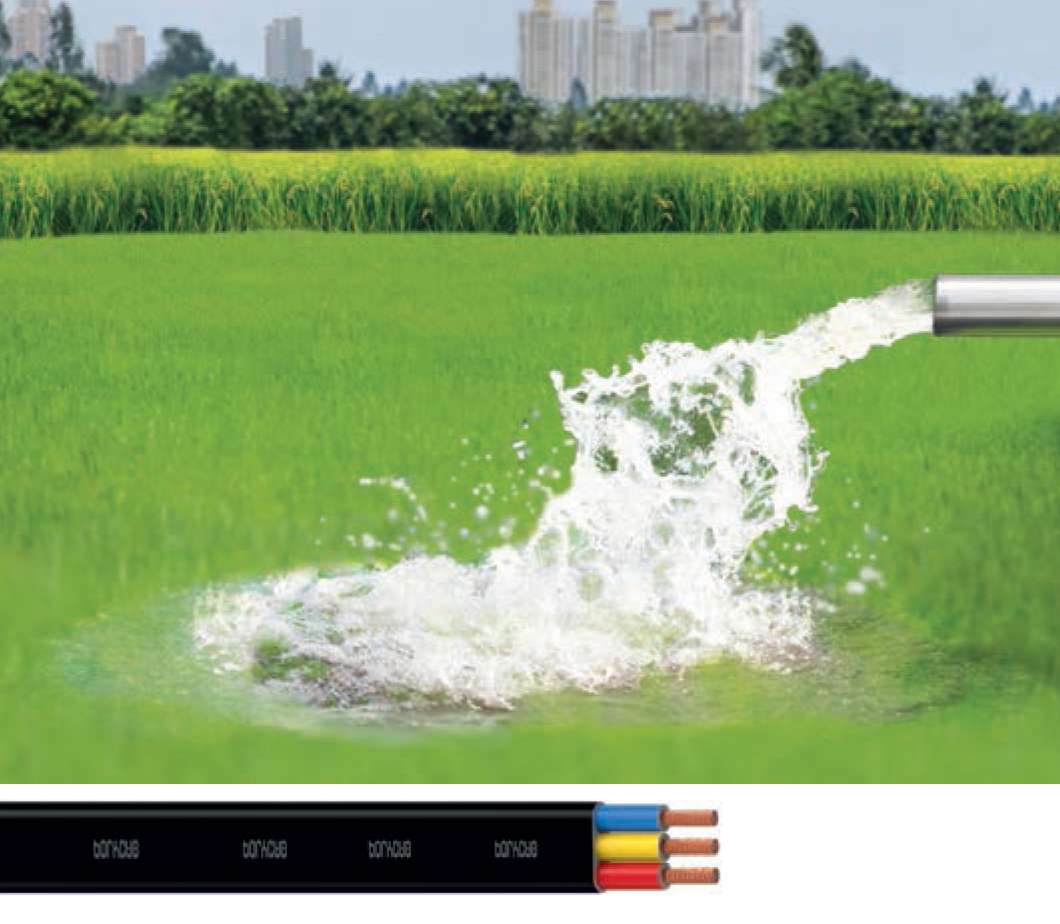

Submersible Cable

Features
  Flexible cable with smooth & glossy finish
  Low operating cost
  Protection against indefinite immersion in water
  Protection against rain-water and against ingress of small solid foreign bodies
  Produced from best quality electrolytic copper
  Insulated with a special grade of PVC on sophisticated co-extrusion lines
  Highly abrasion resistant PVC compound impervious to grease, oil and water etc



Applications
 Borewell or open well pumping
 River and canal lift irrigation pumping
 Public water supply to large residence areas and multi storied apartments
 Water supply to commercial establishments
 Dewatering of mines
 Industrial water supply and transfer

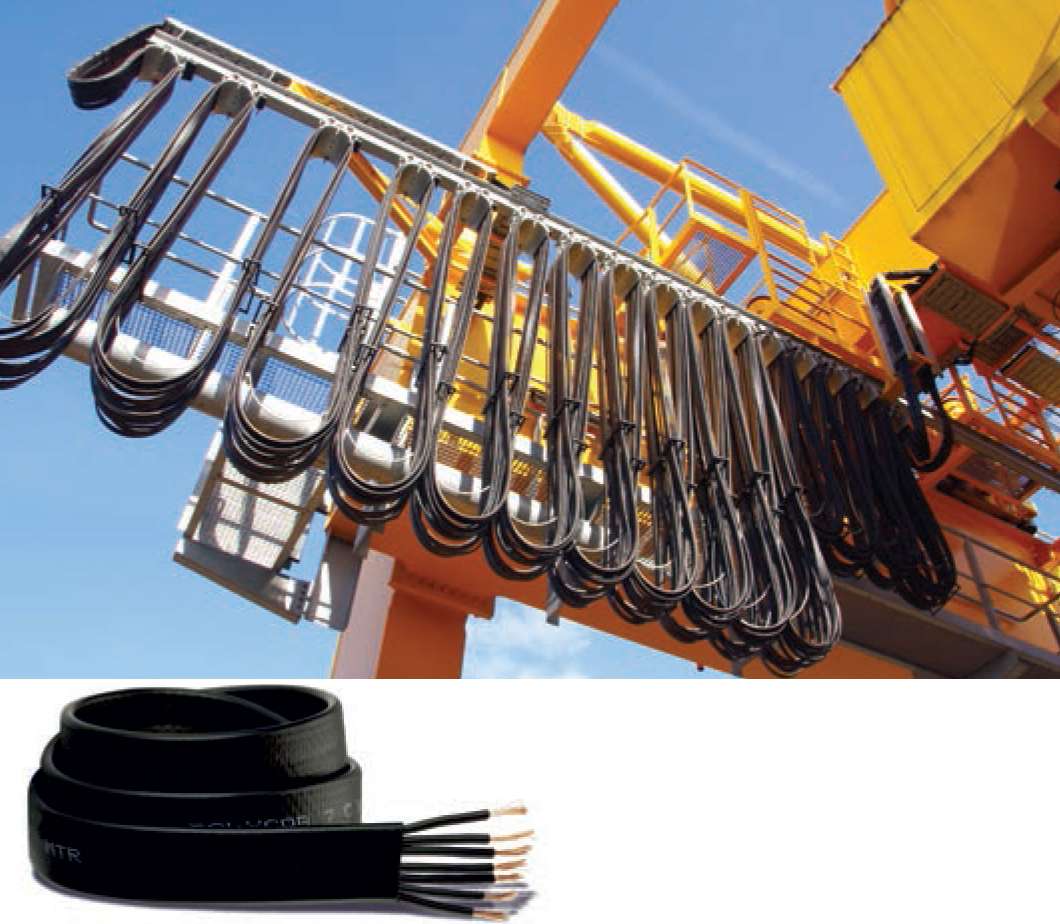

Festoon Cables

Features/ Range
  Flat Multicore Extra Flexible Cables can be offered from 3 cores to maximum 16 cores from sizes 0.5sq.mm to 4sq.mm and 3 cores & 4 cores in sizes 6sq.mm to 16sq.mm.

Ideal For
  These cables are used in Hoists, Cranes and Lifts to carry the signals for all the controls required for the sophisticated Lift applications and Cranes/Hoist operations



Leading Features
  Online Copper Drawing and Annealing
  Glossy Finish Cable
  Soft Touch
  Very High Flexibility
  Suitable for Usage from -15°C to +70°C Applications

Polycab Wires suppliers
